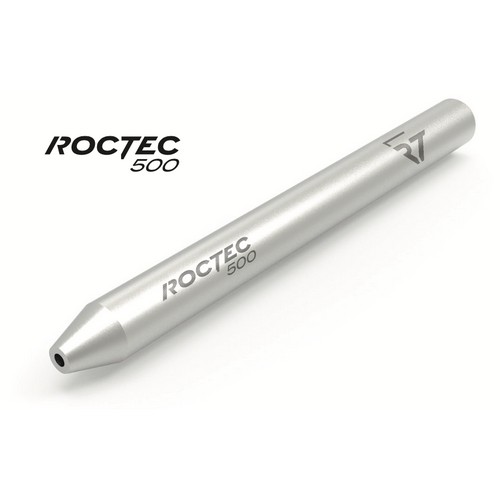

ROCTEC 500 Nozzles

ROCTEC 500 Nozzles

ROCTECTM abrasive Water Jet (AWJ) nozzles are made from unique materials that have literally changed the definition of wear resistance. The Water Jet composite carbide is a tungsten carbide-based material made using the proprietary RapidOmnidirectional Compaction (ROC) process.

The ROC process enables nozzles to be formed using very short consolidation cycles to minimize the natural tendency of ceramic particles to grow in size when exposed to high heat for long periods. Eliminating a metallic binder and maintaining extra-fine grain size both contribute to optimum nozzle performance. The result is an extremely durable material that fiercely resists abrasive and erosive wear.

  • Lowest total cost per hour used
  • Up to 120 hours of precision cutting
  • Up to 250 hours of rough cutting
  • Faster cutting speeds
  • Greater dimensional accuracy
  • Longer uninterrupted cuts
  • Greater performance and service life
  • Predictability — nozzles perform the same every timeCheck out of Garnet & PolyCut
Add to quote
SKU: B1888404 | 010460 | 014194 | 300766 | 050979 Category:

Description

ROCTEC 500 is the most trusted waterjet nozzles for consistent, long-duration, precision cutting.

  • 24 times greater wear resistance than tungsten carbide/cobalt nozzles
  • Superior bore growth improves accuracy and tolerance levels
  • Faster cutting speeds compared to ROCTEC 100
  • Longer nozzle life, less downtime
  • Typically last 30% to 40% longer than ROCTEC 100

Ideal for:
• High-pressure cutting
• Precise, uninterrupted cuts
• When edge quality is critical
• Waterjet tables with multiple cutting heads

Best Practices to Achieve Optimal Life from ROCTECTM Water Jet Nozzles

• Inspect orifice for chipping, wear and/or buildup of dirt or abrasive
• Use mixing chamber components made from carbide or ROCTECTM
• Verify water – orifice alignment prior to abrasive selection
• Precise alignment of the orifice and focusing tube ensures the jet is focused directly down the center of tube • ROCTECTM focusing tubes with precise alignment will allow the longest life and highest level of cutting quality

Additional information

Nozzle Dimensions

Outisde Dia – Inside Dia – Nozzle Length, .250 – .040 – 3.0, .281 – .030 – 3.0, .281 – .035 – 3.0, .281 – .040 – 3.0, .281 – .020 – 4.00, .281 – .030 – 4.0, .281 – .035 – 4.0, .281 – .040 – 4.0, .281 – .020 – 4.0, assy, .281 – .030 – 3.0, assy, .281 – .035 – 3.0, assy, .281 – .040 – 3.0, assy, .281 – .030 – 4.0, assy, .281 – .035 – 4.0, assy, .281 – .040 – 4.00, assy, .315 – .030 – 4.0, .315 – .042 – 4.0, .373 – .030 – 3.0, .373 – .043 – 3.0
